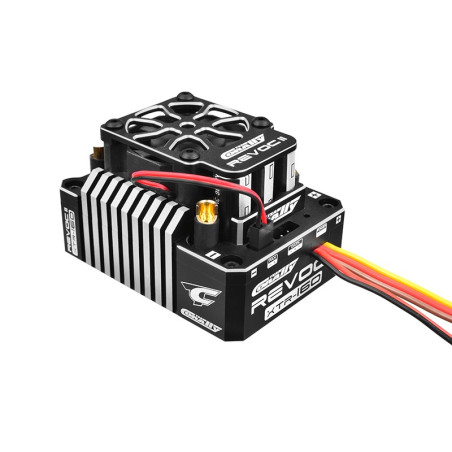

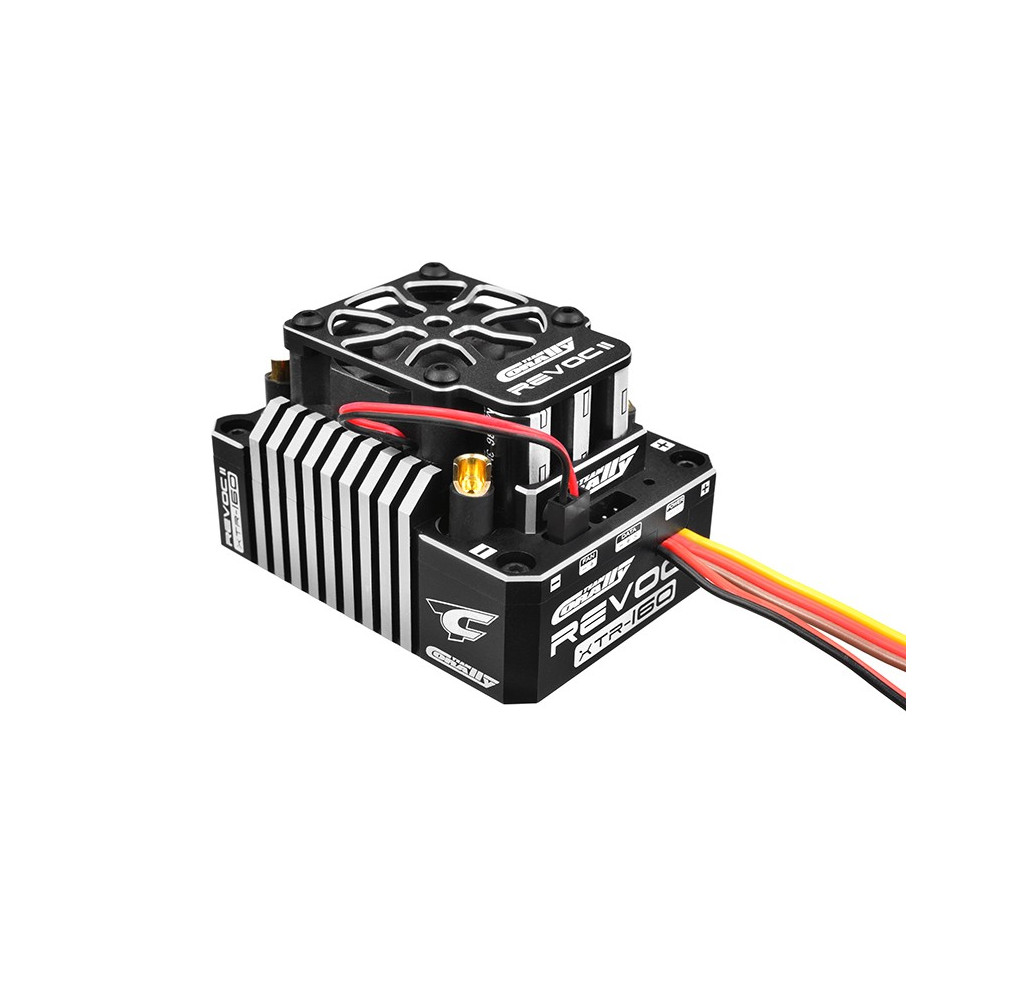

Revoc II XTR 160 "Racing Factory" - Black - Silver Color - 2-6S Esc For Sensored And Sensorless Motors - 160A
Features:

• For sensored and sensorless motors
• Manufactured with the highest grade components
• Ultra compact design
• Aluminum case for improved heat dissipation
• Waterproof power switch
• Advanced boost - turbo timing system for improved acceleration performance
• Enhanced throttle - brake control function.
• 10 programmed profiles can be stored in the ESC
• High power 5A BEC
• Powerful TC Link software to test motor timing and advise the best ESC timing setting

Programming Features:

General Settings
• Running Mode
• Cut-off Voltage
• Overheat protection
• Motor Rotation
• Reverse Speed

Throttle Control
• Dead Band
• Punch Rate SW- Point
• Punch Rate 1
• Punch Rate 2
• Throttle Curve

Brake Control
• Initial Brake
• Drag Brake
• Brake Strength
• Brake Rate Control
• Brake Curve

Turbo Timing
• Turbo Timing
• Turbo Delay
• Turbo Slope

Power Specs
Application: 1/8 Off-Road - 1/8 On-Road
Cont. Current (A): 160A
Burst (A): 900A
Nr of Li-xx Cells: 2-6S
BEC: 6V 5A
Motor Type: Sensored - Sensorless
Motor Limits:
2S - 4S
< 3000 KV • 4-6 Poles
2S - 6S
< 2200 KV • 2-4 Poles
Resistance: 0.00020 ohm
Dimensions: 58x42x36mm
Weight: 117g (without power leads)
