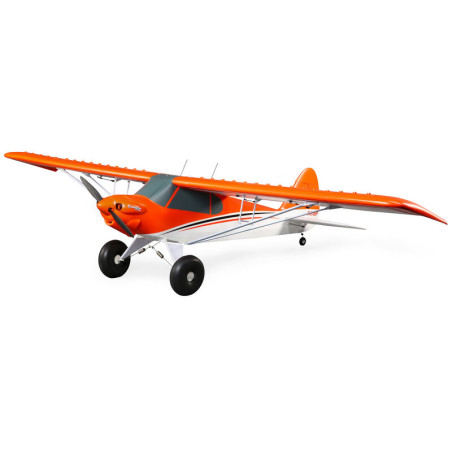

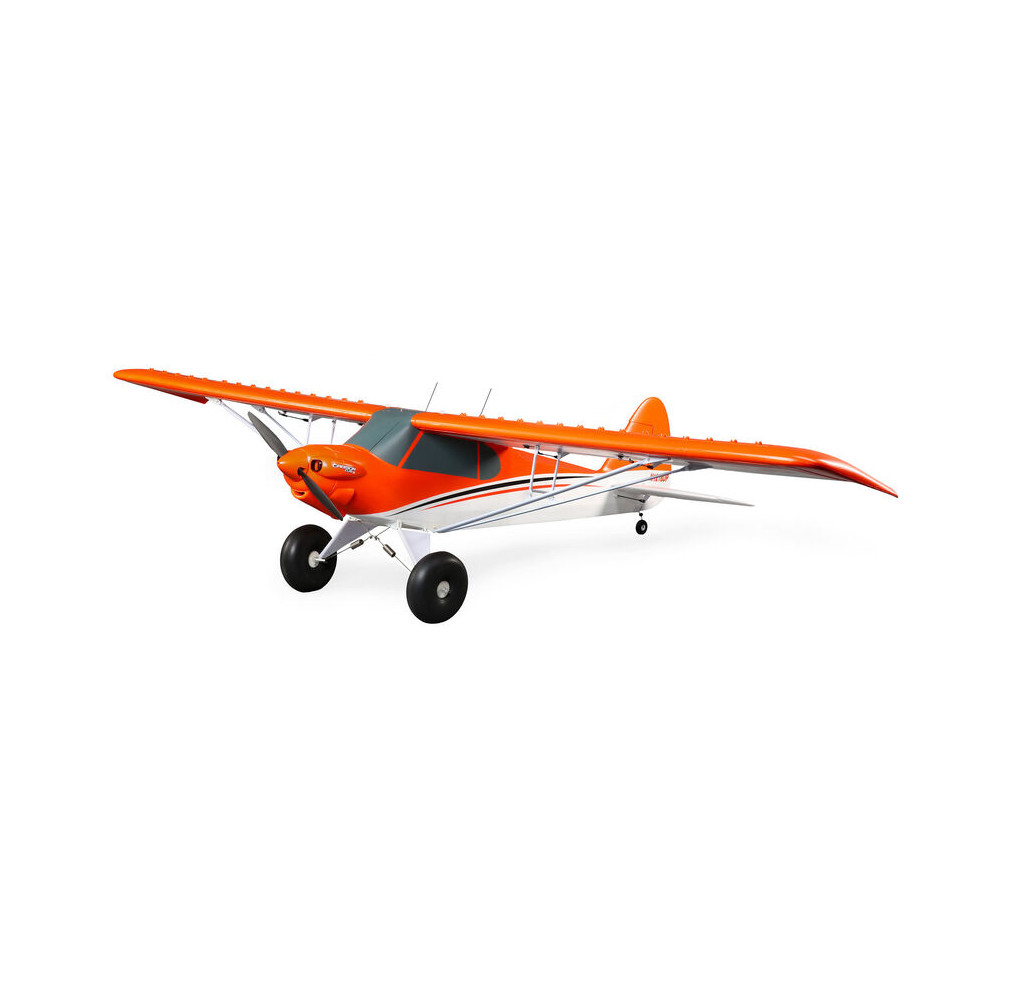

E-FLITE Carbon-Z Cub SS 2.1m BNF
Product Details
The E-flite Carbon-Z Cub SS 2.1m makes it easier than ever to enjoy a truly unique and versatile flying experience on a massive scale. Based on the original Carbon-Z Cub, the model is now equipped with a wealth of new features that improve comfort and flight characteristics and performance, making it even better than ever!
Key Features
An update of the groundbreaking original Carbon Z-Cub in a refined version
In large model format with a 2.1 m wingspan and lightweight, exceptionally robust, fiber-reinforced carbon Z construction with a hollow core
Easy to fly with the optional SAFE® Select attitude limiter
Unsurpassed stability and precision of AS3X® technology for smoother flight
Spektrum™ AR637T DSMX 6-Channel AS3X & SAFE Telemetry Receiver

In The Box
(1) E-flite Carbon-Z Cub SS 2.1m with:
(1) 60A Brushless ESC (installed)
(1) Brushless Outrunner Motor (included)
(6) Digital metal gear servos (installed)
(1) AR637T DSMX 6-Channel AS3X & SAFE Telemetry Receiver
(1) Instruction manual
Needed to Complete
6-channel DSMX® / DSM2® transmitter with full range
4-6S 14.8-22.2V 3200-7000mAh LiPo with EC5™ or IC5™ connector
Compatible LiPo charger

Introduction
The original Carbon-Z® Cub was ground-breaking and created a new category for large-scale, electric-powered models. Based on a platform that was known for legendary versatility, its lightweight and exceptionally strong, composite-reinforced and hollow-core design was mostly factory-finished and assembled so it was easier for more pilots to go "BIG" than ever before. The E-flite® Carbon-Z Cub SS 2.1m is an updated and refined version of the original, equipped with a long list of new features for improved flight performance, capabilities and convenience so you can enjoy a giant-scale flying experience unlike any other.

Features
An updated and refined version of the ground-breaking and category-creating original Carbon-Z Cub
Giant-scale 84"/2.1m wingspan with lightweight and exceptionally strong composite-reinforced, hollow-core Carbon-Z construction
Drooped wing tip design increases wing and aileron area for significantly improved slow speed performance and control
Thumbscrews with decorative gas caps and snap-on antennas to easily install/remove the two-piece wing without tools
Modified flap design allows them to travel both ways for full-span aileron and other mixing options
Articulated and shock-absorbing landing gear with improved and strengthened mounts
Even larger oversized, tundra-style wheels with softer tires for better ground handling
Fully-molded top and bottom landing gear covers for a more scale-like appearance
More secure rear mount and cross braces for the optional floats (sold separately)
Quick-release, multi-position battery mounting tray fits 4–6S 3200–7000mAh batteries
Improved motor design with added bearing for smoother, more reliable performance
15x7 propeller molded from material that better maintains balance and stiffness
IC5 connector (compatible with EC5 connectors) on the 60-amp ESC for better and more reliable power delivery
Vibrant, high-visibility Carbon Cub SS Signature trim and color scheme
Spektrum™ AR637TA 6-Channel AS3X & SAFE Telemetry Receiver
Easy to fly with innovative, optional-use SAFE® Select flight envelope protection
The unmatched stability and locked-in feel of exclusive AS3X® technology
Six factory-installed digital, metal-geared servos with ball-link equipped linkages
Convenient push-button released, top-mounted hatch for easy battery access
Extremely wide scale and mild to beyond-scale aerobatic and wild flight envelope
Tow up to 3-meter span sailplanes with the included aerotow mechanism (servo sold separately)
Overview
The E-flite® Carbon-Z® Cub SS 2.1m makes it easier than ever to enjoy a truly unique and versatile giant-scale flying experience. Based on the original Carbon-Z Cub, it's equipped with an abundance of new convenience, capability and flight performance-improving features. An updated wing design with drooped tips adds wing and aileron area for significantly improved slow speed handling, performance and control. The modified flap design allows them to travel both ways for full-span aileron and other mixing options, and thumbscrews make it easier to install and remove the two-piece wing without tools.

Articulated and shock-absorbing landing gear, equipped with even larger oversized tundra-style wheels with softer tires, offers better ground handling that soaks up the bumps of rough surfaces. The push-button released, top-mounted hatch offers convenient and easy access to the battery compartment – which now holds a quick-release, multi-position battery mounting tray that fits 4S to 6S 3200–7000mAh batteries. An improved motor design featuring an additional bearing, plus a propeller molded from material that better maintains balance and stiffness, results in smoother and more reliable power system performance. The composite-reinforced, hollow-core airframe arrives mostly factory-finished and assembled, and the installed digital, metal-geared servos with ball-link equipped linkages deliver crisp and precise control.

So whether you fly it slow and scale, or perform beyond-scale vertical takeoffs and aerobatics, the Carbon-Z Cub SS will offer unexpected levels of versatility, capability and performance you'll enjoy flight after flight!






Product features
Landing Gear Fixed main with steerable tail wheel
Speed Control Included
Wing Area 1130 sq in (72.9 sq dm)
LiPo Compatibility 4S
CG (Center of Gravity) 4.1 - 4.7" (105 - 120mm) from leading edge of wing measured at fuselage
Completion Level Bind-N-Fly Basic
Propeller Size 15x7E
Recommended Motor Battery 4-6S 4000 - 7000mAh LiPo, 6S LiPo recommended if taking off from water
Minimum Required Radio 4-channel
Radio Sold Separately
Technology SAFE Select
Charger Sold Separately
Receiver Included
Power Type Electric
Airfoil Shape Modified Clark-Y
Approximate Assembly Time Less than 1 hour
Approximate Flight Time 4 - 10 minutes
Flaps Yes
Material FUEL
Battery Sold Separately
Motor Size BL50-525Kv
Product Length 56.3" (1430 mm)
Steering Steerable tailwheel
Product Weight 155oz (4386g) Without Battery
Spinner Size 2.4" (61 mm)
Wing Loading 16.6 - 19.3 oz/sq ft (50.7 - 59.0 g/sq dm)
Servants Included
Skill Level Level 2
Trim Scheme Colors White, orange, black and gray
Wingspan 84.6" (2149 mm)
