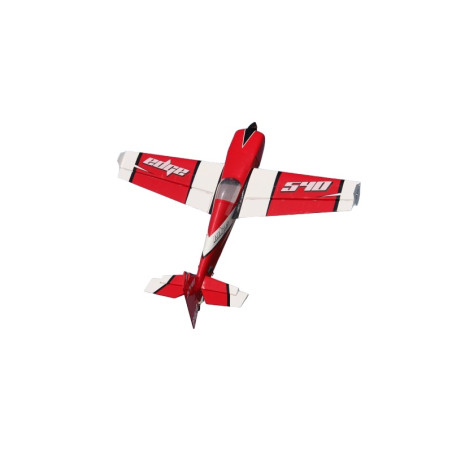

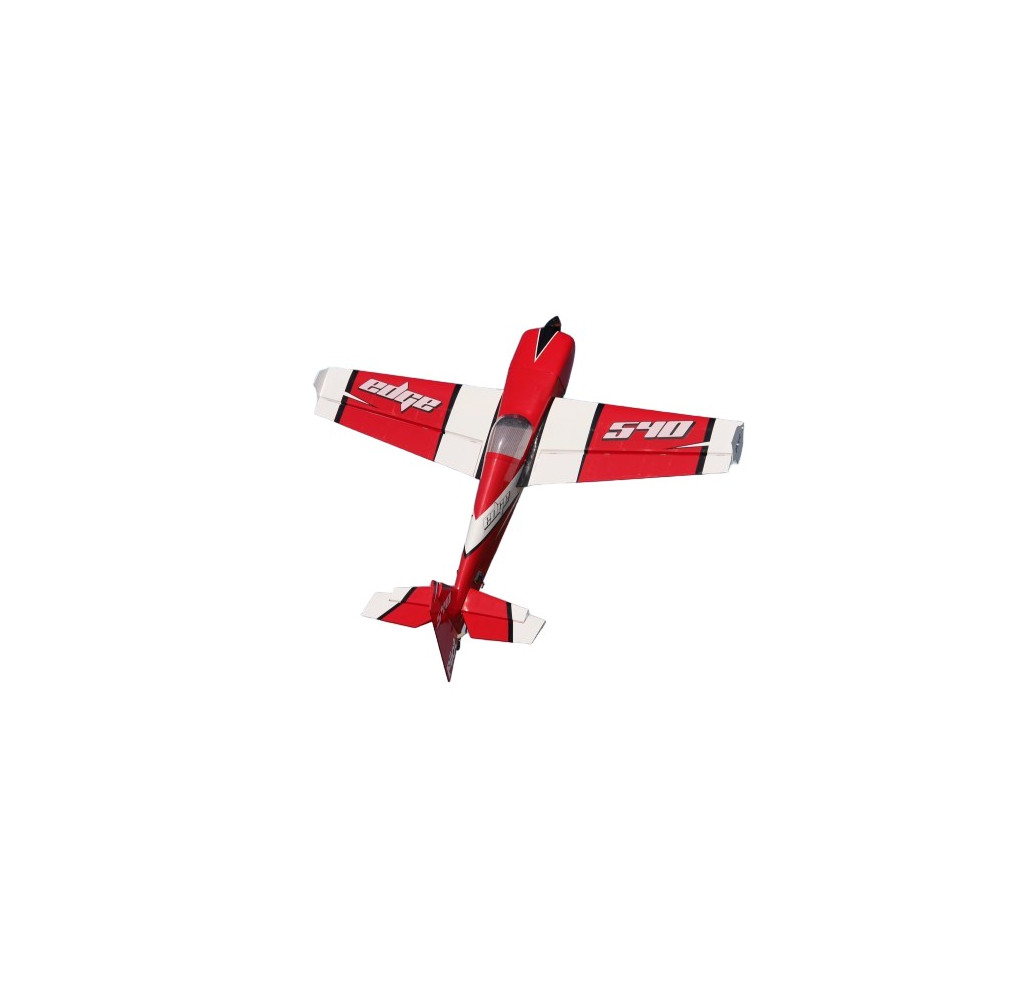

EDGE 540 74" 1.88M (02) ARF PILOT RC
LEARN MORE
The EDGE 540 PILOT RC 74" (1.88m) is the ultimate in aerobatics, both 3D and imposed.

NEW! Hybrid construction of wood and composite materials for a specially reinforced fuselage and wings.
NEW! Patented rapid assembly system for the wings.
NEW! Patented rapid assembly system for the canopy. Particularly useful for the electric version, quick battery change!
Original German Oracover coating (Ultracote)
Experienced highly prefabricated construction can be ready in less than a day
Pre-installed hinges (glued and pinned)
Easy canister installation thanks to open construction
Removable wings and stabilizer
Laser engraved motor mounting position
Pull-Pull system for drift servo
The hood is suitable for gasoline and electric engines
Thermal or electric motors
The Extra NG has been designed from the ground up to be lighter yet robust with its wood and carbon construction, faster, more aggressive and more agile, whilst retaining its excellent flight characteristics that Pilot-RC models are known for.

You really need to see videos of this model in action to understand its capabilities. In this case, it's not about whether the plane is fast enough, but whether you can keep up!

MATERIALS INCLUDED:
Complete kit with all basic accessories (such as carbon fiber main gear, caster and wing tubes as well as fiberglass control horns and wheel pants)
Pre-installed hinges and pre-assembled canopy
Pre-prepared fuel tank and fuel hose, including filler port and vent
Wheels, wheel axle and fairings
Pre-prepared return cable with ball joint
Matching carbon cone
Features :

Wingspan: 1.88 m

Length: 1,675 m

Weight: ~5.3kg

Wing surface: 66.67 dm²

Engine: 30 - 40cc

Colors: 02 BLUE YELLOW AND GREEN (ref: Oracover 21-050, 21-033, 21-043 / Ultracote HANU873, HANU872, HANU903)

Not included :

Servos: 4-5 high torque (minimum 15 kg) plus throttle servo (Uses x1 per aileron, x1 per elevator and x1 for rudder)

Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, transmitter, extensions and possibly other small accessories...
