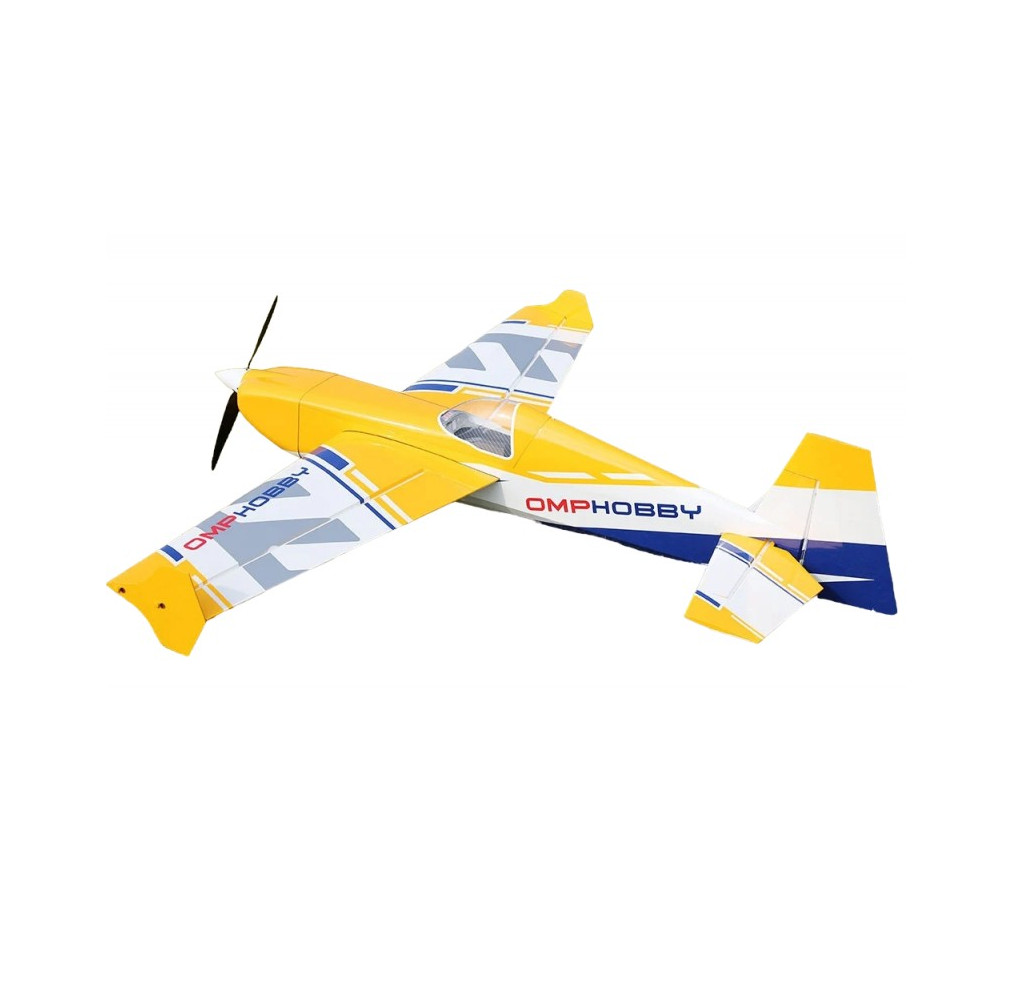

EDGE 540 74" ARF 1880MM (JAUNE) OMPHOBBY
LEARN MORE
OMPHOBBY presents the Edge 540 74" in Carbon/Kevlar reinforced balsa version, covered with Oracover, very durable and in very bright colors. The Edge 540 is a 3D BEAST. This plane will do everything you want and much more .
If you don't like 3D flying, don't be afraid, this plane also flies very well as an Aresti aerobatic plane.

It can be equipped with a 30-40cc gasoline engine or a 3000-4000W brushless motor with a 6-12S LiPo battery. The extremely light balsa/plywood fuselage reinforced with Kevlar®/carbon composite, numerous carbon parts, a removable fiberglass cowl and a large canopy allowing perfect easy access to the entire power system and the RC equipment. The motor is mounted on a reinforced plywood/composite housing using a radial mount.
The two-piece wing made entirely of balsa with a symmetrical aerodynamic profile with a carbon wing key, the wing halves are attached with screws to the fuselage. The large ailerons are each controlled by a single servo. You can install the supplied SFG winglets on the wing tips.

The tailplane is light all in balsa, the "horizontal" tailplane is one-piece, glued into the fuselage. The elevator and rudder are controlled by servos to be installed in the rear part of the fuselage.

The main gear is carbon, fiberglass fairings, lightweight wheels and the tail wheel with carbon support is coupled to the fin.

Recommended settings for double rates and control surface exponentials:

Exposure Direction Value
Fin Top 35~40% Top 36~39°
Low 40~45% Down 20~26°
Depth Top 38~45% Top 45~53°
Low 45~55% Down 30~35°
Drift Top 38~45% Top 42~50°
Low 45~55% Down 28~32°
Features :

Color: YELLOW
Engine: EP / GP
Wingspan: 1880mm
Length: 1800mm
Wing surface: 70.51dm²
Wing loading: 68-75gr/dm²
Center of Gravity: 120-135mm
Weight: ~4.8 - 5.3kg

Contents of the kit:

ARF kit in balsa reinforced with Kevlar canvas Oracover
Painted fiberglass hood, wheel fairings
A carbon main gear
A tail wheel
The wheels
Accessories ...



To be purchased separately:

Radio and receiver: 6 channels
Gasoline engine: 30-40cc
Brushless motor: 3000-4000W
Servos: 5 x 20-35kg
Controller: 120A
LiPo battery: 6S 5000mAh / 8S 3300-4000mAh / 12S 3300-4000mAh
Propeller: depending on engine or 20x8"-20x9"
Reservoir
Cone
