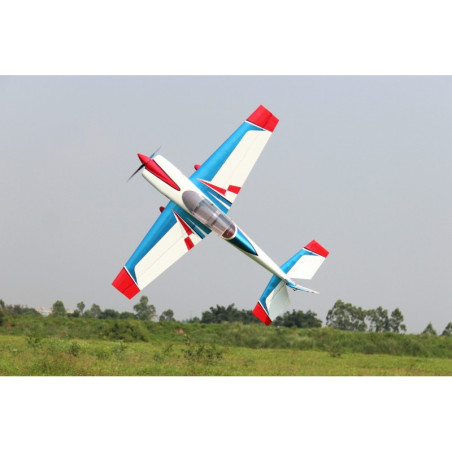

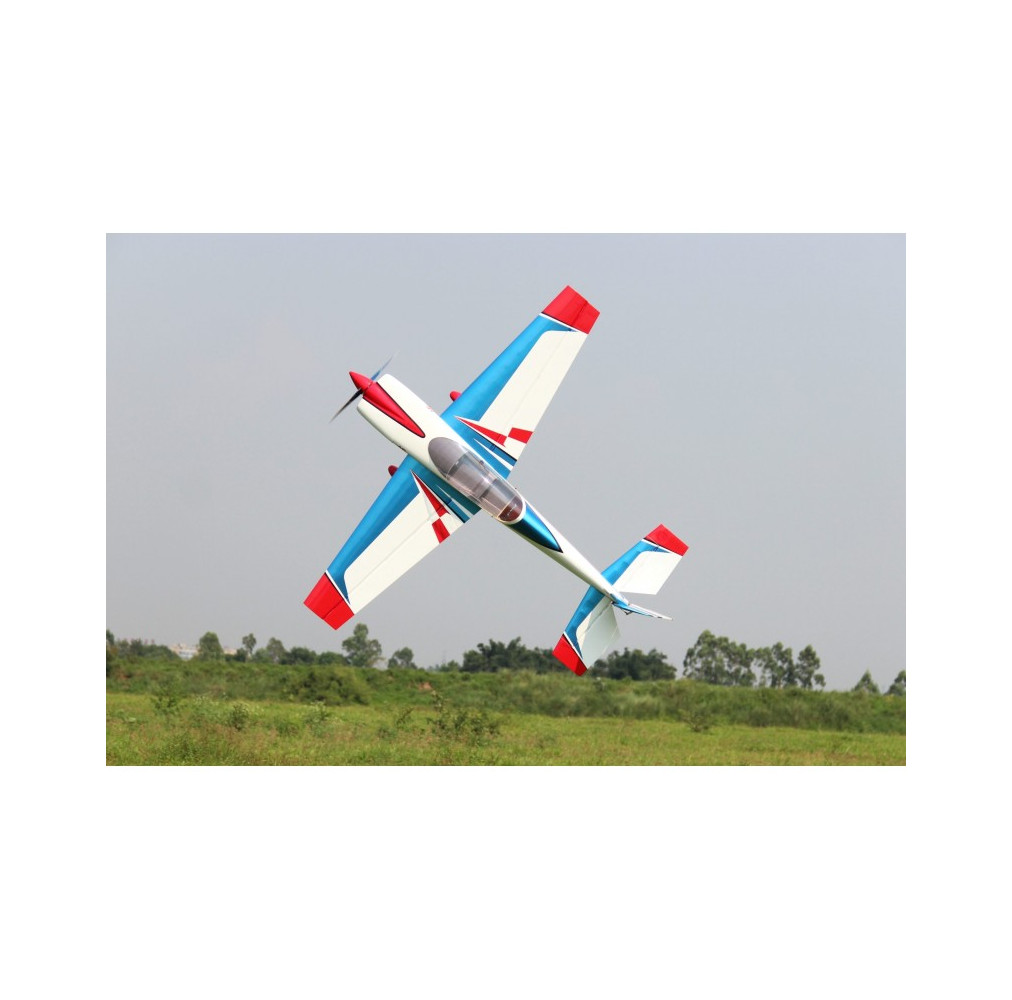

EXTRA NG 78" 1.97M (01) ARF PILOT RC
FEATURES:
NEW! Hybrid construction from wood and composite materials for specially reinforced fuselage and wings.
NEW! Patented quick assembly system for wings, stabilazer and SFG.
NEW! Patented quick assembly system for canopy. Especially useful for electric version, fast battery change!
Film covering applied over a Genuine German Oracover (Ultracote) base
Highly prefabricated, experienced builders can have air ready in under a day
Pre-installed aileron and elevator hinges (glued and pinned)
Easy canister installation due to open construction
Removable wings and stabilizer
Laser engraved motor mounting position
Pull-Pull system for Rudder servo
Cowl fits both gasoline and electric motors

INCLUDED HARDWARE:
Complete air frame with all basic accessories (such as carbon fibre main undercarriage, tail-gear assembly and wing-tubes as well as fibreglass control horns and wheel pants)
Pre-installed hinges and pre-mounted canopy
Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
Wheels, axels and wheel pants
Pre-prepared pushrods with ball links
Matching carbon spinner, 3.5"

CRASH KITS AVAILABLE FOR THIS MODEL:
Landing gear repair package. Includes the wooden parts required to repair the damage often suffered around the landing gear area.
Front fuselage repair package. Includes the wooden parts required to repair the damage often suffered around the front of the model
Please note that additional or alternative spare wood outside of the above Packs is not available to order.

REQUIRED HARDWARE:
Motor: 30-40cc or equivalent electric

Servos: 5 high torque plus throttle // Uses x1 per aileron, x1 per elevator half and x1 on rudder

Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.

PILOT-RC RECOMMENDED HARDWARE:
Servos: Pilot-Rc PW28AH (28Kg – 0,056s at 8,4v)
Servo arms: Pilot-Rc 1,6" Aluminium arms (included with Pilot-Rc servos)
Wingbags: Pilot-RC wingbags

EXTENSION WIRE LENGTHS:
Throttle:
10cm

Each aileron:
25cm
(to reach receiver direct)

Each elevator:
70cm

Rudder:
Pull pull, no extension required

CENTER OF GRAVITY:
180mm
Measured back from leading edge of the wing at the fuselage.

You will find a laser engraved C.G. emblem on the inside of the fuselage, located close to the wing tube, which also shows the exact location for Center of Gravity.

FULL BUILD MANUAL:CLICK PHOTO BELOW
