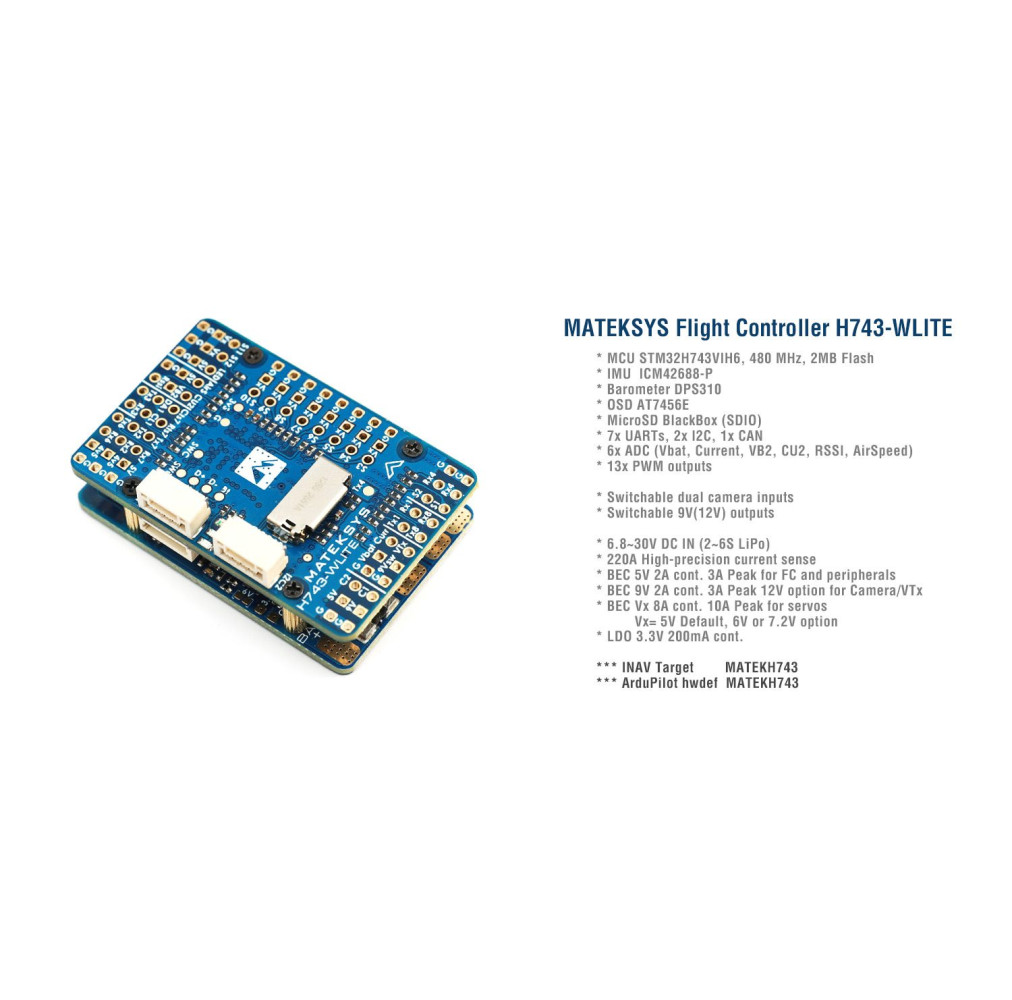

Matek H743-WLITE STM32H7 Flightcontroller 480Mhz, Ardupilot CAN BUS
FC Specifications

MCU: STM32H743VIH6, 480MHz , 512KB RAM, 2MB Flash
IMU: ICM42688-P
Baro: DPS310 (I2C2)
OSD: AT7456E
Blackbox: MicroSD card slot (SDIO)
7x Uarts (1,2,3,4,6,7,8) with built-in inversion.
13x PWM outputs(12+LED)
6x ADC (VBAT, Current, RSSI, Analog AirSpeed, VB2, CU2)
3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
2x I2C
1x CAN
USB/Beep Extender with Type-C(USB2.0)

Dual Camera Inputs switch
9V(12V) for VTX power switch

High-precision Current Sense, 220A range
ADC VB2 voltage divider: 1K:20K
ADC AirSpeed voltage divider: 20K:20K
FC Firmware

INAV: MATEKH743
ArduPilot: MATEKH743
PDB

Input voltage range: 6.8~30V (2~6S LiPo)
1x ESC power pads
Battery Voltage divider 1K:20K (Scale 2100 in INAV, BATT_VOLT_MULT 21.0 in ArduPilot)
Current Senor: 220A, 3.3V ADC (Scale 150 in INAV, 66.7 A/V in ArduPilot)
Sense resistor: 90A continuous, 220A peak
BEC 5V output

Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed
Continuous current: 2 Amps, Max.3A
BEC 9V /12V output

Designed for Video Transmitter, Camera, Gimbal ect.
Continuous current: 2 Amps, Max.3A
12V option with Jumper pad
for stable 9V/12V output, input voltage should > output voltage +1V
BEC Vx output

Designed for Servos
Voltage adjustable, 5V Default, 6V or 7.2V via jumper
Continuous current: 8 Amps, Max.10A
for stable Vx output, input voltage should > Vx voltage +1V
BEC 3.3V output

Designed for Baro / Compass module and external 3.3V peripherals
Linear Regulator
Continuous current: 200mA
Physical

Mounting: 25 x 25mm, F2mm
Dimensions: 44 x 29 x 14.5 mm
Weight: 22g w/ USB/buzzer adapter
