Holybro H-RTK F9P Base GPS RTK Module for Pixhawk 4 - 12022
Product information "Holybro H-RTK F9P Base GPS RTK Module for Pixhawk 4 - 12022"
Holybro H-RTK F9P Base GPS RTK Module for Pixhawk 4 - 12022

GNSS RTK module with Ublox F9P chip, high gain antenna and IST8310 compass from Holbyro.

The F9P module is identical to article number 12018 but is now supplemented with a high-gain antenna as an optimal RTK basis. The antenna has a standard 5/8 inch thread.

The multiband F9P models from Holybro (F9P Rover Lite & F9P Helical ) are particularly suitable as rover.

(It can also be used with other Pixhawk flight controllers such as the Cube Orange without any problems, but the cable on the rover then has to be adjusted accordingly.)

Dimensions: 34.8 x 52.8 x 12mm (module) / 152x62 (antenna)

Weight: approx. 49g (module) / approx. 470g (antenna)





scope of delivery

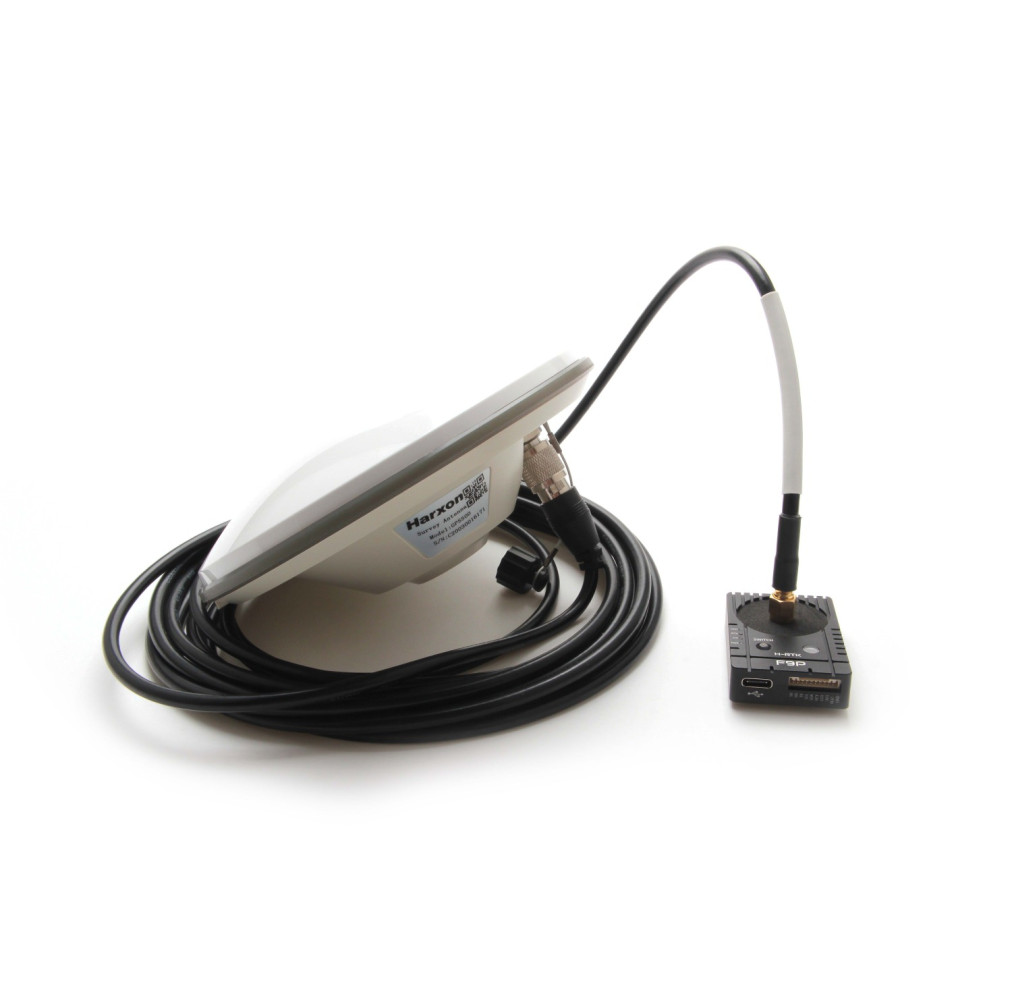

– H-RTK F9P Base *1
– High Precision GNSS Antenna(GPS500) *1
– Male-male SMA -TNC cable(length: 5m) *1
– USB type-c cable *1
