ER-150 Tricycle Full Set with Brakes (T-28 Trojan 2.2m) Controller
ER-150 Tricycle full set with Brakes and Controller for T-28 Trojan 2.2m model

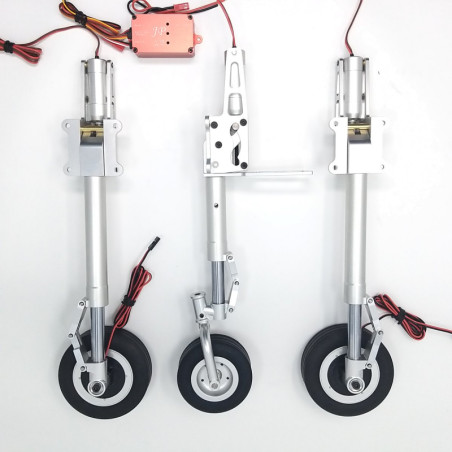

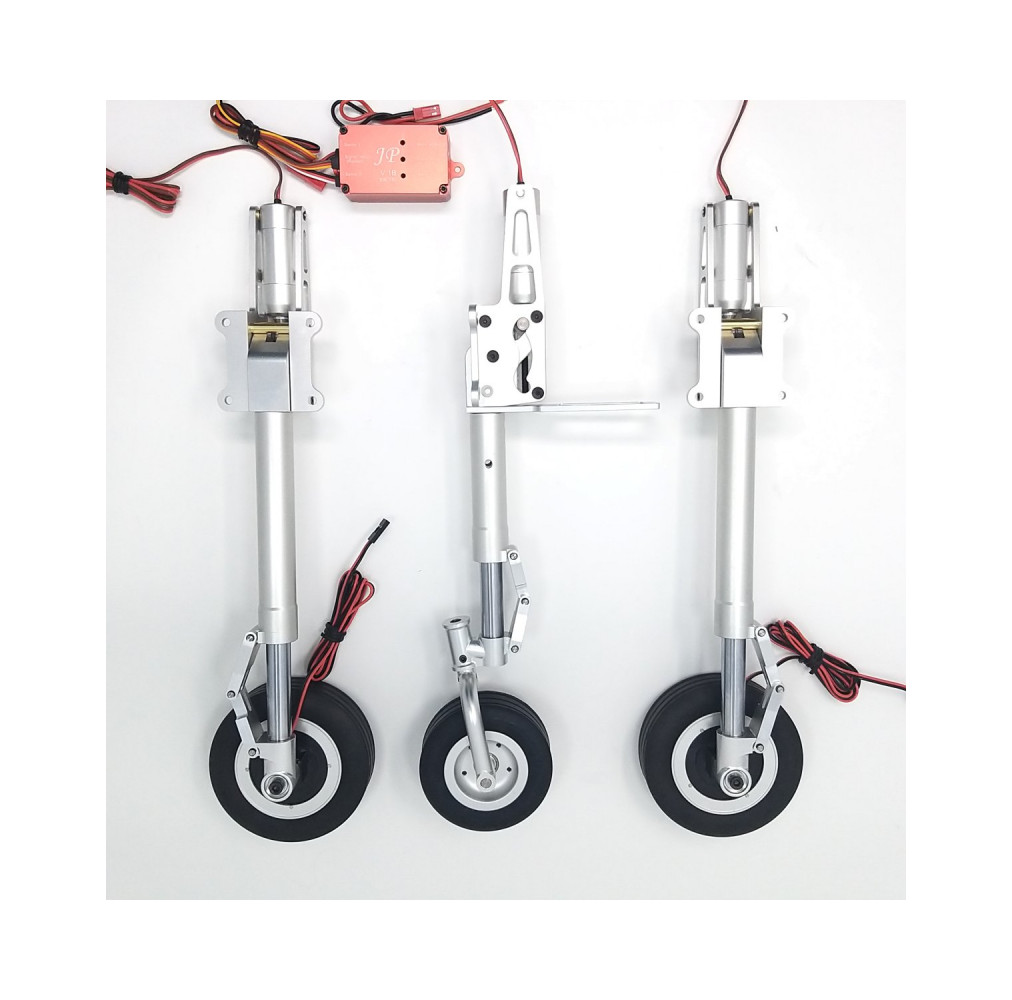

CNC Machined aluminium articulated and mechanical suspended « scale » electric landing complete gear set including 82.5(3"1/4) and 70mm wheels with brakes system and 3 retracts with a JP Hobby V1 version controller retract box which includes an electrical magnetic brake controller. Main gear and single nose gear. For planes up to 20kg.

Specifications
Materials: Aluminium
Suspension: mechanical
Wheels: ball bearings mounted
For planes up to 20kg
Servo plate with control for threaded rod and ball joints
Technical Specifications
Struts diameter: 18mm
Mounting Struts diameter: 15mm
Main gear wheels diameter: 82.5mm (3"1/4)
Nose gear wheel diameter: 70mm
Wheels axle diameter: 8mm (Main) - 6mm (Front)
Weight: 1435g (for the complete set including the 3 struts, 3 retracts, wheels and the controller)
Dimensions: for detailed dimensions, please refer to the pictures
Working voltage: 7.4-8.4V (2S LiPo)
Brakes working volrage: 7.2-30V
Content
2x Scale metal struts for main landing gear equiped with 82.5mm (3"1/4) wheels & brakes system
1x Scale metal strut for nose gear equiped with 70mm wheel and plate
2x Electric Retracts ER-150 15mm (20kg/Low/Outside)
1x Electric Nose Retract ER-150 15mm (20kg/Low/Outside)
1x ER-150 V1 version All Integrated controller retract box (doors opened when the gear is down)
Requires
2 cells battery
Nose direction servo. Servo size for steering nose wheel : 40x 20x 37mm size with 3.8 to 8kg torque
