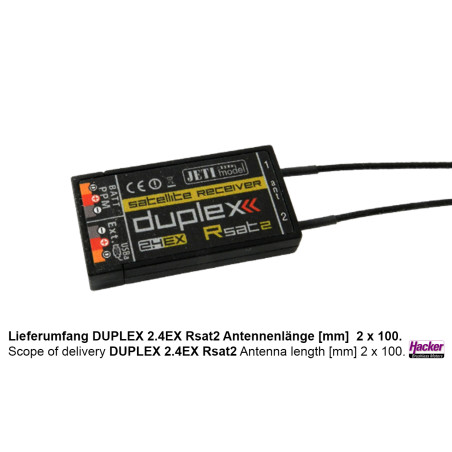

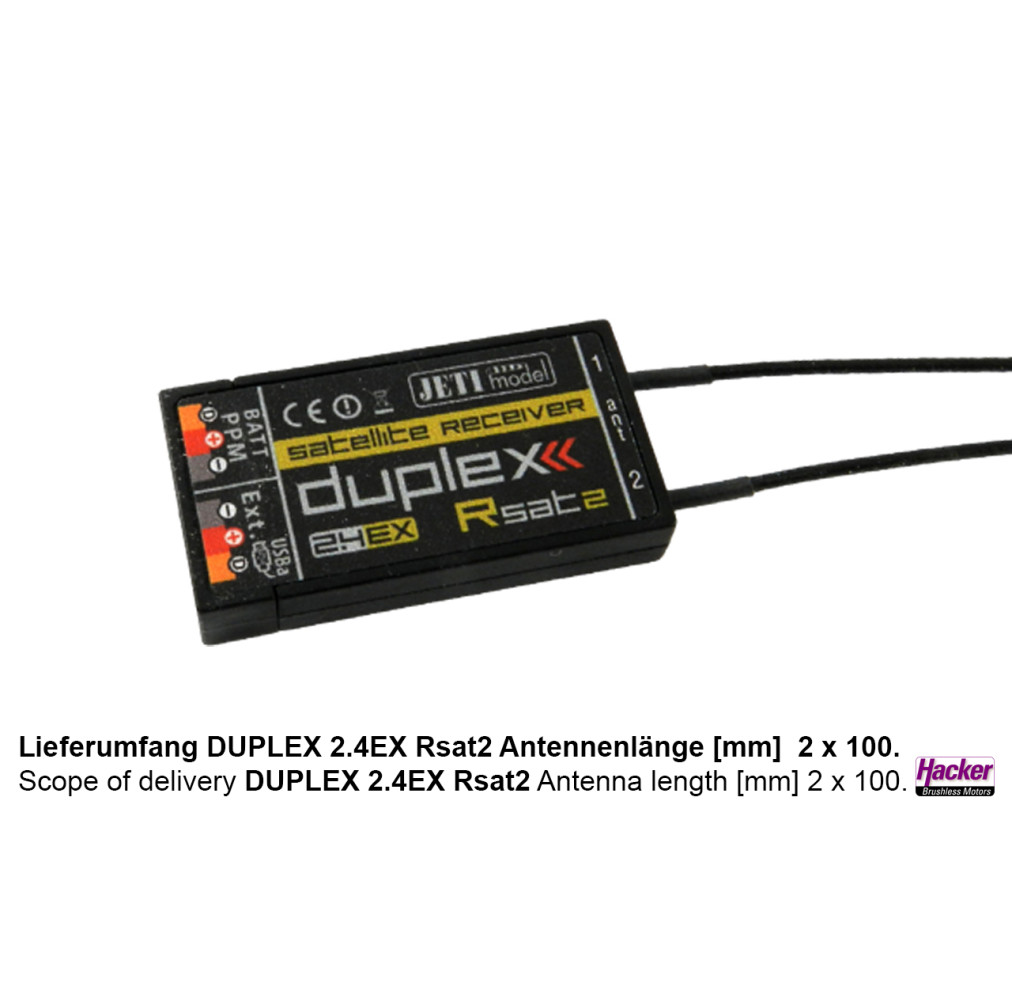

DUPLEX 2.4EX satellite receiver Rsat2 Jeti Model
Description JETI Duplex RSAT 2:

This satellite receiver can be connected as an extension to duplex receivers that offer an RSAT connection. It can also be used as a receiver for the Central Box 100/200/400 and many other servo management systems.

It is also possible to connect this satellite receiver to numerous flybarless systems, servo/switch boxes and to various quadrocopter systems as a sum signal receiver.

The Rsat2 is a full-fledged receiver with full reception performance without servo slots.

- Supplied together with patch cable approx. 28cm in length

Technical data:
Manufacturer: Jeti Model
Operating voltage: 3.2 - 8.4V
Frequency band: 2.4 GHz Current
consumption approx.: 35 mA
Dimensions approx.: 38x20x7mm
Weight approx.: 5 g (without PPM cable)
Sensitivity: -106 dBm
max. Output power: 15 dBm
Number of channels: PPM 16
Antenna length: 2 x 200mm
Operating temperature: -10°C to 85°C
supported protocols (with SW from 3.22): PPM, UDI, EX-Bus
