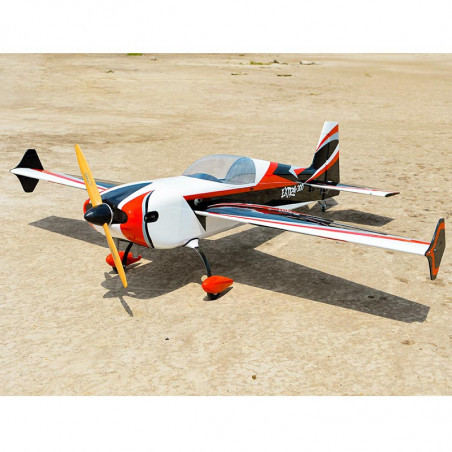

Black Horse Plane EXTRA 300 76cc ARF
Superb voltige plane
Structure Balsa - légère and rigid contreplaqué, soigneusement assemblée

Entoilage Oracover déjà posé

Green fiber bonnet

Main train d’atterrissage en carbone


Features:


Wingspan: 2260 mm.
Length: 2250 mm.
Mass: 8.5 kg.
Surface area: 92.6 dm2.
Air load: 91.8 g/dm2.
Servo support: 42mm x 21mm.
Train d’atterrissage: Carbon fiber for the main train (included) and Hi-grade aluminum for the roulette arrière (included).
Propeller cone diameter: Plastic 95mm.

Requirements elements:


Radio: 06 flights minimum.
Servo: 06 servos (HV High torque steel gear servo).
Receiver battery: 6-7.4V/ 2200-3000mAh.
Engine: 76cc essence.
Propeller: Adaptée au motor.

Configuration recommended for electrical motorization:

Motor: Brushless outrunner 5000 - 6500W, 230KV.
Cellule Lipo: 12 cells 5,000-7,000mAh.
Receiver battery: 6-7.4V/ 2200-3000mAh.
ESC: 120A.
