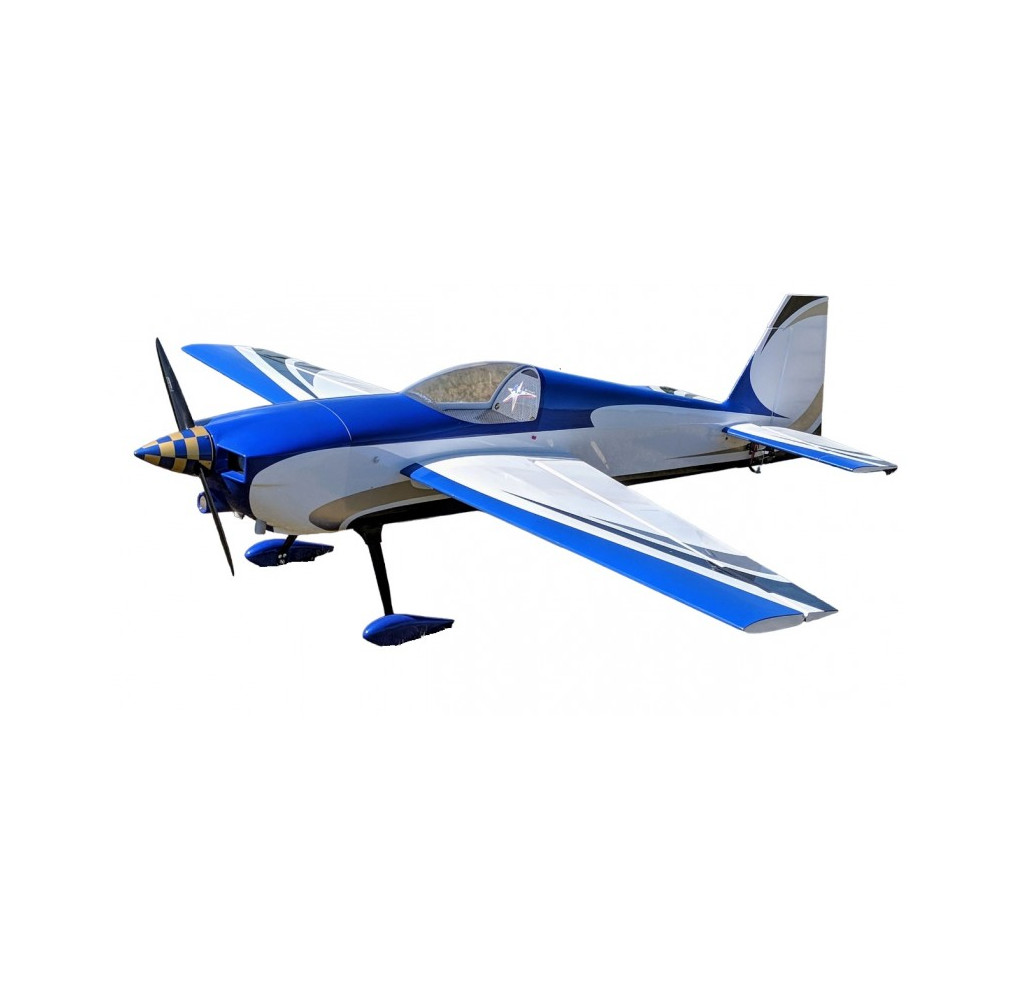

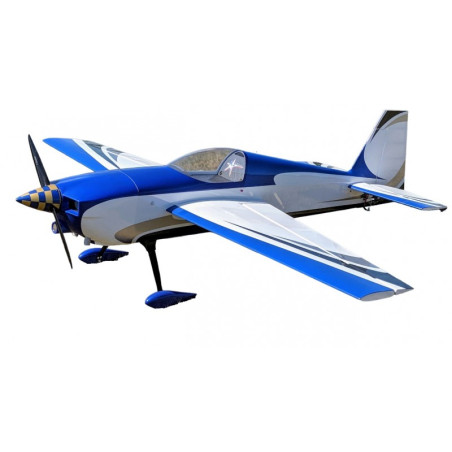

LASER Z200 103" ARF (BLEU) AJ AIRCRAFT
The Laser Z200 is an American aerobatic aircraft designed for 100-130cc gasoline engine, for experienced pilots, from simple flight capability to extreme 3D style.

The fuselage is of an ultra-light design, with reinforced balsa and Kevlar®/carbon composite plywood parts, a removable fiberglass cowl and a large fuselage hatch allowing perfect access to the entire power system and to RC equipment.

The two-piece wing made entirely of balsa with a symmetrical aerodynamic profile with a carbon wing key. The wings are attached with screws to the fuselage. The ailerons are equipped with 2 servos.

The lightweight “HORIZONTAL” tail all in balsa, in two parts with a carbon tube. Elevator is controlled by 2 servos each installed in the elevator flap. Drift is controlled by a pair of servos with a round-trip cable installed in the cockpit.

The entire model is covered with ULTRACOTE® / ORACOVER® iron-on film.

The carbon main gear, fiberglass fairings, lightweight wheels, tail wheel with carbon support is coupled to the fin.

DELIVERY IN 3 PACKAGES.

Features :

Color: BLUE
Wingspan: 2616mm
Length: 2540mm
Weight: ~11800-12250gr

Contents of the kit:

Canvased wooden kit
EN parts reinforced with Kevlar
Carbon-Kevlar reinforced firewall
Fiberglass hood, fairings
Carbon wing key
Tail wheel
Lightweight foam wheels with aluminum rim
Removable canopy with cockpit
Carbon train
Accessories...
Manual

To be purchased separately:

Radio and receiver: 9 channels
Petrol engine: 100-130cc
LiPo battery
Controller
Servos: x 9
Propeller: depending on engine, 28x10" for a 120cc
Carbon cone: 5" / 127mm
Fuel tank: 1000ml
Extensions...
