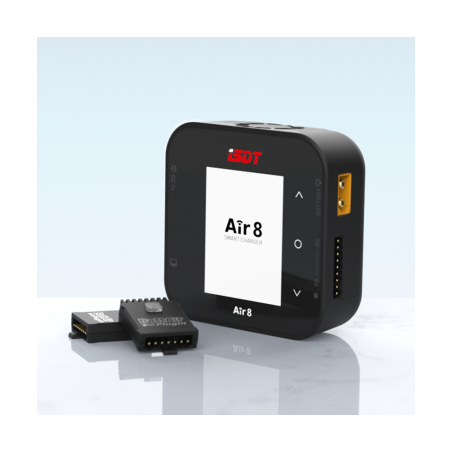

ISDT AIR 8 CHARGER
Compact 500W pocket charger with Batt Air function
1-8s LiPo, LiHv and ULiHv capable
Charging current up to 20 amps
New scOS 2.0 for even more functions and easier operation
Powerful balancer with 1.5A/cell

DESCRIPTION
The new Air8 charger from iSDT is the successor to the Q8 and offers 500W charging power with a weight of only 169 grams and almost tiny dimensions of 80x80x34 mm. 1-8s LiPo or LiHv batteries can be charged with a maximum of 20A. The new scOS 2.0 offers improved system stability and new functions such as dark mode (will be delivered later via update), a DC power mode and a mode to bring defective batteries to 0V.

The Air 8 supports the Batt Air function, the necessary Batt Air plugs are available separately!

The IPS display ensures very good readability even in sunlight.

Technical data:

Input voltage: 10-34V - DC voltage
Input current max: 20A
Output voltage: 1-34V
Charging power: 500W (from 27V input voltage)
Discharging power: 15W Charging
current: 0.1-20A
Discharging current: 0.1-1.5A
Balancer current: 1500mA/ Cell
adjustable final charging voltage: up to 4.35V for LiHV
number of cells - battery type: 1-8 LiXX, 1-8 LiHV & ULiHv 1-16 NiXX, 1-12 Pb
Weight: 169 g
Dimensions: 80x80x34mm
Color display: 2.4" IPS LCD, easy to read Can also be updated in daylight and at an angle of up to 178°
via USB
Multilingual menu navigation, German can be selected.

Scope of delivery: instructions, display film, iSDT sticker

CHARACTERISTICS
Balancer compensation current per output: 1.5A
Input voltage: 10-34V
Max. discharge power: 15W
Max. number of NiCd/NiMH batteries: 16
Max. charging current: 20A
Max. voltage lead batteries: 24V
Maximum power: 500W
Max. number of LiPo cells: 8th
Max. number of LiHv cells: 8th
Length (mm): 80x80x34mm
Integrated power supply: No
Plug type input: XT60
Plug type charging output: XT60
