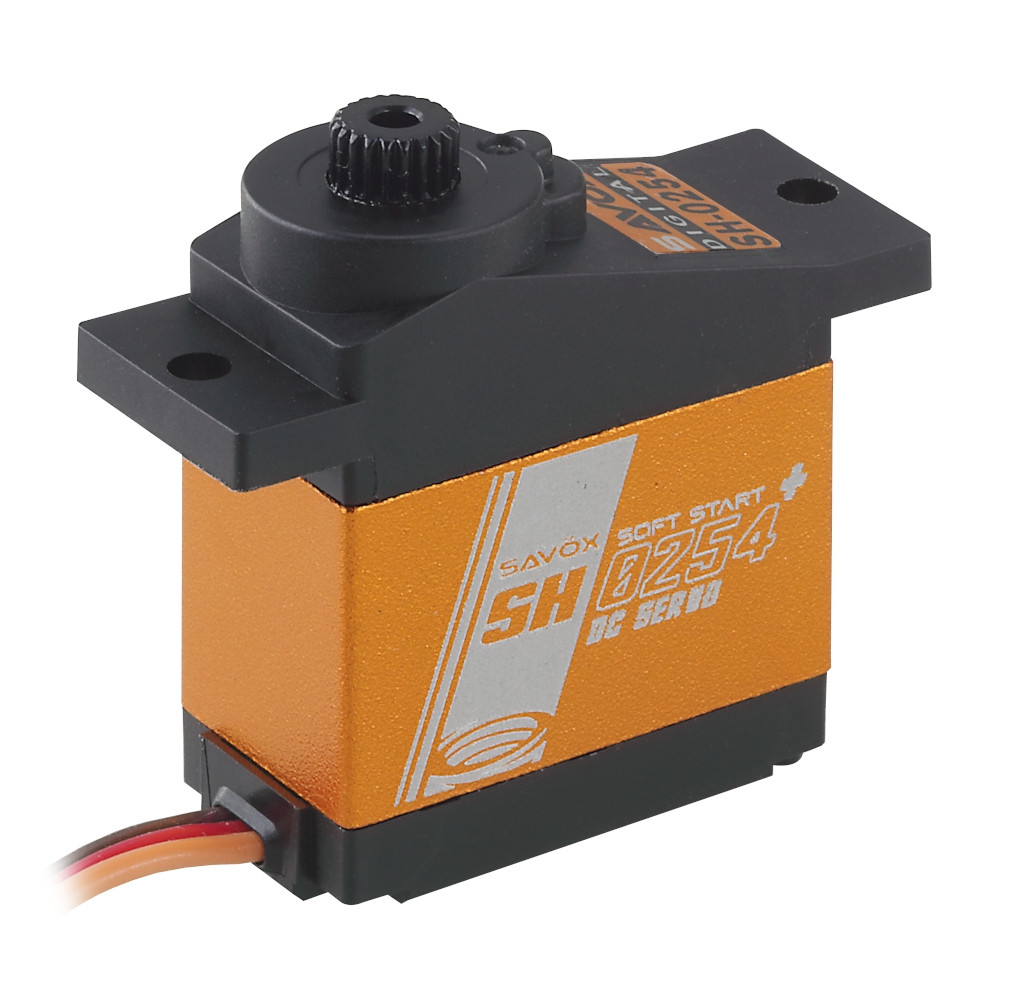

SAVÖX SH-0254 SERVO
Dimensions (L/W/H): 22.8 x 12.0 x 29.4 mm
Weight: 15.8 grams
0.16/0.13 sec/60 degrees and 3.1/3.9 kgcm at 4.8/6.0 volts
Mini digital servo for various purposes, e.g. as an upgrade servo for small ARF wing models
New + version with soft start, Sanwa SSR mode

DESCRIPTION
The SH-0254+ is a powerful mini size servo which is very suitable for use in wing models. Of course it can also be used in other areas.

The SH-0254+ is ideal when reliability and control power are important in small dimensions. The robust gearbox also forgives heavier loads. Whether in the area of ??a glider or for all functions as an upgrade servo for “foam models”, the SH-0254+ is an absolute all-rounder.

The new + version of the well-known SH-0254+ servo differs slightly from its predecessor both visually and technically. A soft start, which slowly moves the servo to the starting position when switched on, and the Sanwa SSR mode characterize the + version.


CHARACTERISTICS
Operating time S2/60° (sec): 0.13
Operating time S1/60° (sec): 0.16
Width (mm): 12
Weight (g): 15.8
Length (mm): 22.8
Height (mm): 29.4
Actuating force S1 (kg*cm): 3.1
Actuating force S2 (kg*cm): 3.9
Voltage range: 4.8V-6V
Control frequency: Up to 333Hz, 1520us center pulse (up to a maximum of 200Hz is recommended in order not to shorten the service life unnecessarily)
High-voltage capable up to 8.4V: No
Voltage 1 (Volt): 4.8
Engine type: brush motor
Recommended use: Helicopter, plane, car, boat
Gear type: plastic
Ball bearings (number): 2
Output teeth (number): 21
Voltage 2 (Volts): 6.0
Housing type: Part metal
Classification: Mini
