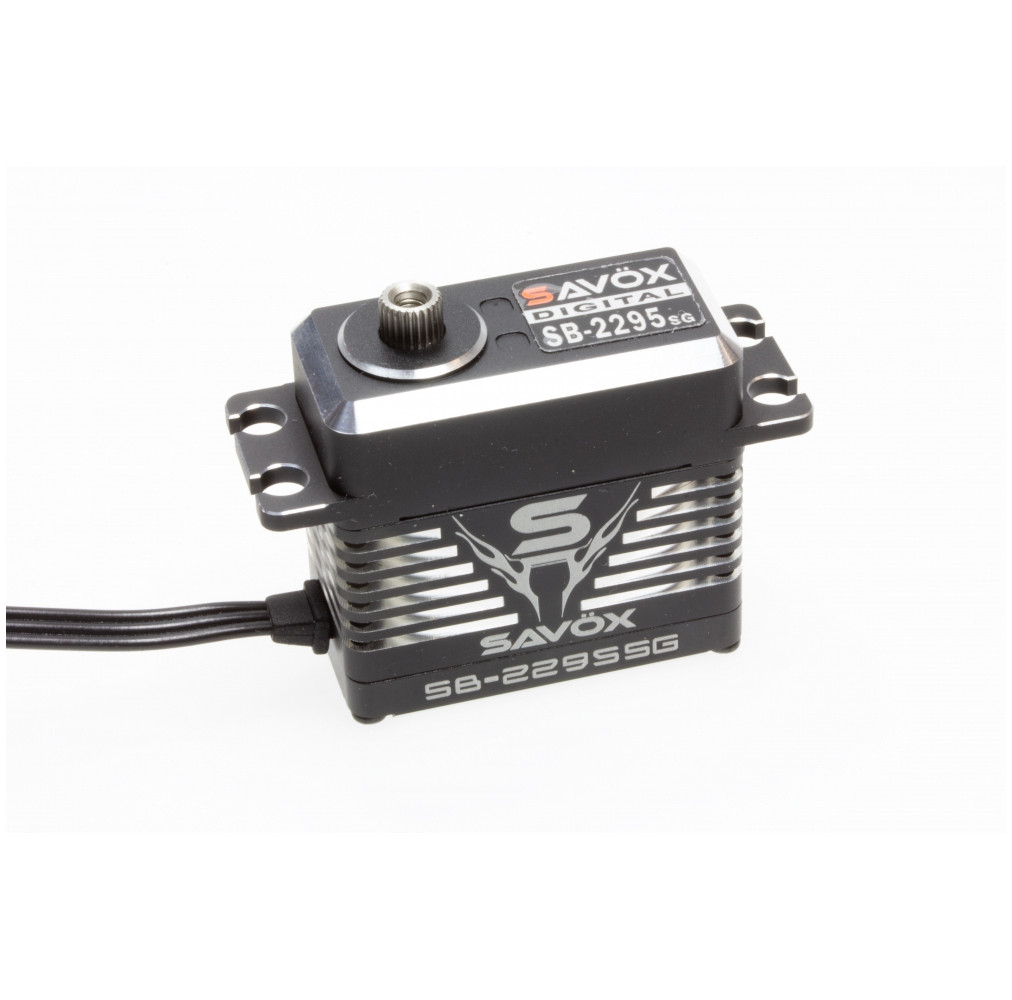

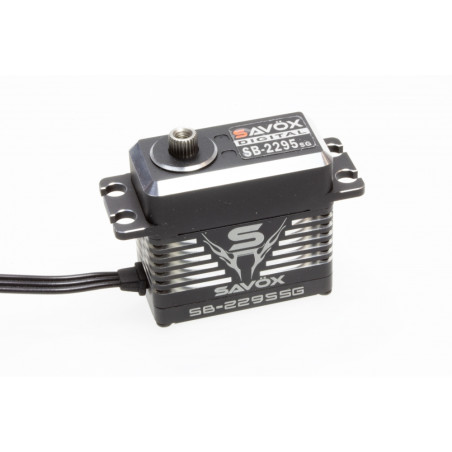

SAVÖX SB-2295SG SERVO
High-voltage brushless digital servo developed with the best pilots in the world
Operating voltage 4.8V - 8.4V * Direct operation possible for 2s!
Extremely fast, strong and precise * 0.05s / 60° and 40 kg*cm torque at 8.4V
Optimized control for even better response, ideal for the swashplate in high-end helicopters
Patented structure, 3x bearings, perfect heat dissipation thanks to the brushless motor integrated in the housing

DESCRIPTION
With the new SB-2295SG servo from SAVOX, the Taiwanese manufacturer Savöx has achieved a revolution in servo technology. The patented design of this monster ensures up to 50% more performance, with proven standard installation dimensions.

This monster servos was developed with the best helicopter pilots in the world, the result is a true helicopter monster servo, the values ??speak for themselves. At 8.4V it produces a torque of 40 kg*cm with an operating time of 0.050s / 60°! The servo control has been massively improved, making the SB-2295SG perfect for operation with modern gyro systems.

This was achieved by integrating the brushless motor directly into the all-aluminum housing. In addition to a thermal advantage, this opens up the possibility of installing a larger motor. In order to be able to optimally transmit the enormous actuating forces over the long term, a third ball bearing was integrated into the gearbox. In direct comparison to our SB-2271SG, the torque has been increased by more than 50% from 20 kg*cm to 32 kg*cm. At the same time, the operating time was reduced from 0.065 s/60° to 0.060 s/60° (data at 7.4V). A fully rubberized servo cable is also standard in this servo range. It protects the servo cable from damage, but is still flexible enough to be laid cleanly. The SB-2295SG is perfect for use in helicopters, but also for RC cars or fixed-wing models.

Scope of delivery: Servo including servo lever and fastening screws
Areas of application: Helicopters, airplanes, RC cars

CHARACTERISTICS
Operating time S2/60° (sec): 0.050
Operating time S1/60° (sec): 0.060
Width (mm): 20.2
Actuating force S1 (kg*cm): 32
Height (mm): 38.7
Voltage range: 4.8V-8.4V
Actuating force S2 (kg*cm): 40
Length (mm): 40.3
Weight (g): 79
Control frequency: Up to 333Hz, center pulse 1520us
High-voltage capable up to 8.4V: Yes
Recommended use: Helicopter, plane, car, boat
Output teeth (number): 25
Ball bearings (number): 3
Voltage 1 (Volt): 7.4
Engine type: Brushless motor
Gear type: steel
Housing type: Full metal
Voltage 2 (Volts): 8.4
Classification: default
