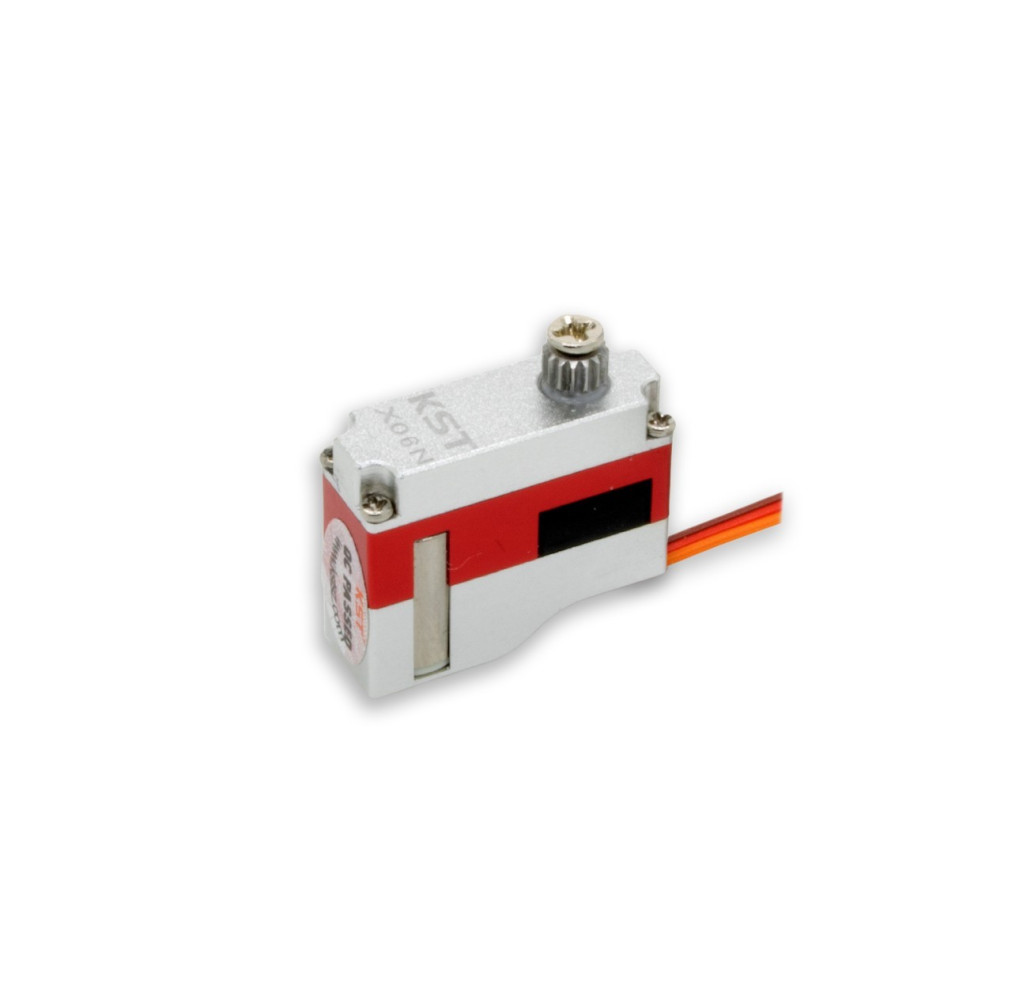

Servo KST X06N V6.0 F3K, F5K, RES 1.8kgf.cm@8.4V
The KST X06 servo is a high-precision digital servo distinguished by its small size and light weight.
This makes it an ideal choice for lightweight and space-constrained applications.
It was specifically developed for model building, particularly for F3K (DLG), F5K, F5J, RES, and indoor models.
Its high precision and reliability also make the KST X06 suitable for competition applications.
The robust metal gears and aluminum housing ensure exceptional durability.

N variant without mounting tabs.

Technical Details:
Operating Voltage [V]: 3.8 - 8.4

Torque [kgf.cm]@3.8V: 0.8
Torque [kgf.cm]@6.0V: 1.5
Torque [kgf.cm]@7.4V: 1.7
Torque [kgf.cm]@8.4V: 1.8

Response Time [s/60°]@3.8V: 0.12
Response Time [s/60°]@6.0V: 0.08
Response Time [s/60°]@7.4V: 0.075
Response Time [s/60°]@8.4V: 0.07

Width [mm]: 7.0
Length [mm]: 20.0
Height [mm]: 16.6
Weight [g]: approx. 6.0

Motor Type: Coreless
Frequency Range: 1520µs/333Hz, 1000µs-2000µs
Gearbox Type: Steel
bearing type: 1BB
Gearing: 15T-4
Servo type: F3K/ F5K /RES
Electronics: Digital
Position sensor: Potentiometer
Waterproof: No
Soft start: Programmable
Manufacturer: KST

Programmable with KST-Tool 3 and KST-Tool 5

Please refer to the model manufacturer's servo specifications when selecting servos.
Characteristics
Operating voltage: 8.4V (HV)
Gearbox type / bearing: Hardened steel / 1 BB
Mounting tabs: No mounting tabs
Engine type: Coreless
Position sensor: Potentiometer
Interlocking: 15T-4
